Description

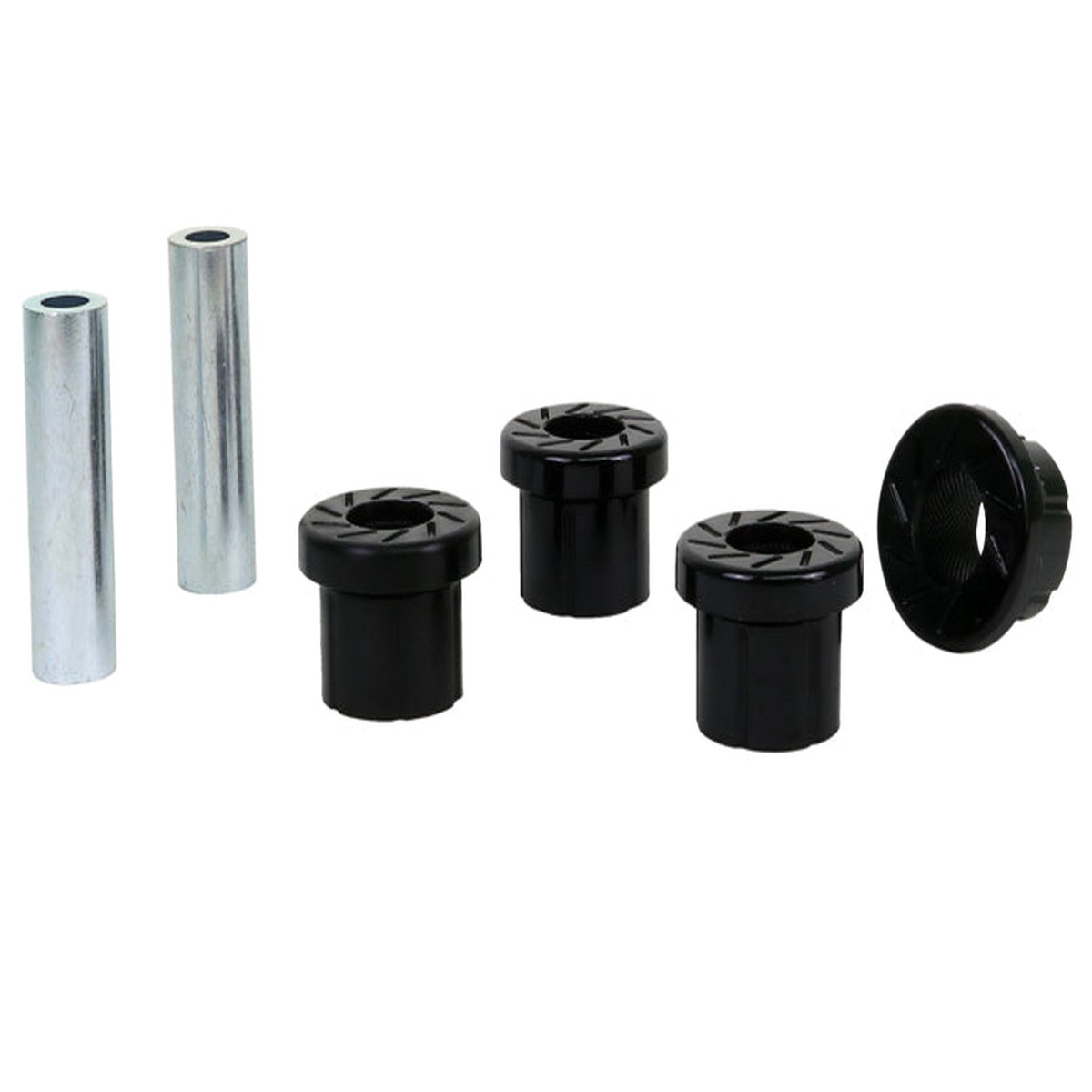

Whiteline W73453 rear leaf-spring front-eye bushing kit for compatible Mitsubishi Triton MQMV and Nissan Navara D27 4WD applications. The four synthetic-elastomer bushes and two steel tubes replace worn original front-eye bushes to improve rear-axle location and suspension control under load, towing and off-road use.
Features
- Complete front-eye set: four bushes and two tubes.
- High abrasion resistance and load-bearing capacity.
- Resistant to oil, grease, ozone and weathering.
- Internal grease reservoirs support correct lubrication and long service life.
Dimensions
- Bush outside diameter: 41.2 mm.
- Bush inside diameter: 25.4 mm.
- Bush body length: 38.4 mm.
- Flange thickness: 10 mm.
- Flange outside diameter: 53.5 mm.
- Tube size: 25.4 14.5 80 mm.
Fitment
Confirm the leaf-spring front-eye application and vehicle before ordering. Professional installation is recommended. Lubricate the specified internal bores and working faces, tighten at normal ride height and recheck after installation.
Downloads
Z5300 Spring-Eye and Shackle Bushing Installation Guide (PDF)
